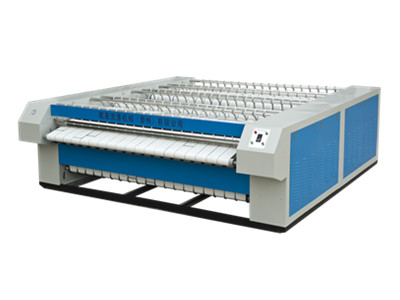

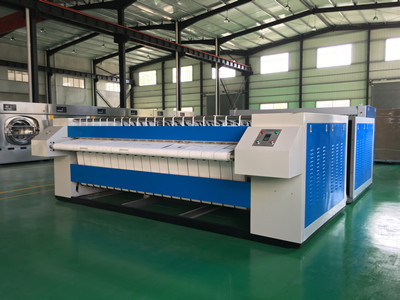

床單熨燙機Ironing machine
燙平機、熨平機、床單被套熨燙機系列（電加熱/蒸汽加熱/燃?xì)饧訜幔┬吞枺篢PI-1800單滾，TPI-2200單滾，TPI-2500單滾，TPI-2800單滾，TPI-3000單滾，TPII-1800雙滾，TPII-2200雙滾，TPII-2500雙滾，TPII-2800雙滾，TPII-3000雙滾，TPIII-2800雙滾，TPIII-3000雙滾，TPIII-3300雙滾，TPIII-3000三滾，TPIII-3300三滾，TPIIII-3000四滾，TPIIII-3300四滾，TPIIIII-3000五滾，TPIIIII-3300五滾，TPIIIIII-3000六滾，TPIIIIII-3300六滾。
系列燙平機采用蒸汽，傳動采用調速電機，根據加熱溫度和織物厚度隨意調節速度。
大滾（棍）筒采用優質不銹鋼制造，表面經過磨削加工處理使織物磨損降低到最低。
運行可靠，采用減速器聯接皮帶輪及鏈輪傳動，并配置傳動漲緊機構，保證運行平穩。
所有副輥采用噴鋅處理，搞腐蝕能力強，經久耐用。
Ironing machine, ironing machine, sheet ironing machine series (electric heating / steam heating / gas heating) Model: TPI-1800 single roll, TPI-2200 single roll, TPI-2500 single roll, TPI-2800 single roll, TPI-3000 single roll, TPII-1800 double roll, TPII-2200 double roll, TPII-2500 double roll, TPII-2800 double roll, TPII-3000 double roll, TPIII-2800 double roll, TPIII-3000 double roll, TPIII- 3300 double rolls, TPIII-3000 three rolls, TPIII-3300 three rolls, TPIIII-3000 four rolls, TPIIII-3300 four rolls, TPIIIII-3000 five rolls, TPIIIII-3300 five rolls, TPIIIIII-3000 six rolls, TPIIIIII-3300 six rolls roll.
The series ironing machine uses steam, and the drive uses a speed-regulating motor, which can adjust the speed at will according to the heating temperature and fabric thickness.
The large roll (roller) barrel is made of high quality stainless steel, and the surface is ground to reduce the wear of the fabric to a minimum.
Reliable operation, using a reducer to connect the pulley and sprocket drive, and equipped with a tensioning mechanism to ensure smooth operation.
All auxiliary rollers are treated with zinc spray, which has strong corrosion resistance and is durable.
| 技術參數 TECHNICAL SPECIFICATION | |||||
| 型號 | Model | TPI-2500(單滾) | TPI-2800(單滾) | TPI-3000（單滾） | TPII-2800（雙滾） |
| 最大熨平寬度 | Max Ironing Width | 2500 | 2800 | 3000 | 2800 |
| 熨平速度（電/蒸汽） | Ironing Speed | 0-6 | 0-6 | 0-6 | 0-6 |
| 最高加熱溫度(℃) | Max Ironing Temprerature | 158 | 158 | 158 | 158 |
| 蒸汽壓力(Mpa) | Steam Pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| 蒸汽耗量（kg/h） | Steam Consumption | 70 | 80 | 90 | 100 |
| 電加熱功率 | Electric Heating Power | 27 | 30 | 32.4 | 36 |
| 電機功率 | Motor Power | 1.5 | 1.5 | 1.5 | 1.5 |
| 額定電壓(V) | Rated Voltage | 380 | 380 | 380 | 380 |
| 外形(長×寬×高 mm) | Dimension(L.W.H) | 3150×1350×1350 | 3800×1350×1350 | 4200×1350×1350 | 3800×2500×1350 |
| 整機重量 | Net Weight | 2500 | 2800 | 3100 | 3500 |
| 技術參數 TECHNICAL SPECIFICATION | |||||
| 型號 | Model | TPII-3000(雙滾) | TPIII-3000(三滾) | TPIIII-3000（四滾） | TPIIIII-3000（五滾） |
| 最大熨平寬度 | Max Ironing Width | 3000 | 3000 | 3000 | 3000 |
| 熨平速度（電/蒸汽） | Ironing Speed | 0-22 | 0-22 | 0-22 | 0-22 |
| 最高加熱溫度(℃) | Max Ironing Temprerature | 158 | 158 | 158 | 158 |
| 蒸汽壓力(Mpa) | Steam Pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| 蒸汽耗量（kg/h） | Steam Consumption | 100 | 110 | 120 | 120 |
| 電加熱功率 | Electric Heating Power | 44 | 46 | 50 | 60 |
| 電機功率 | Motor Power | 2.2 | 2.2 | 2.2 | 2.2 |
| 額定電壓(V) | Rated Voltage | 380 | 380 | 380 | 380 |
| 外形(長×寬×高 mm) | Dimension(L.W.H) | 4250×2300×1350 | 4200×3500×1350 | 4250×4500×1350 | 4250×3500×1350 |
| 整機重量 | Net Weight | 3800 | 4500 | 5000 | 5500 |
